Cable Manager for Large Electronic Mounts

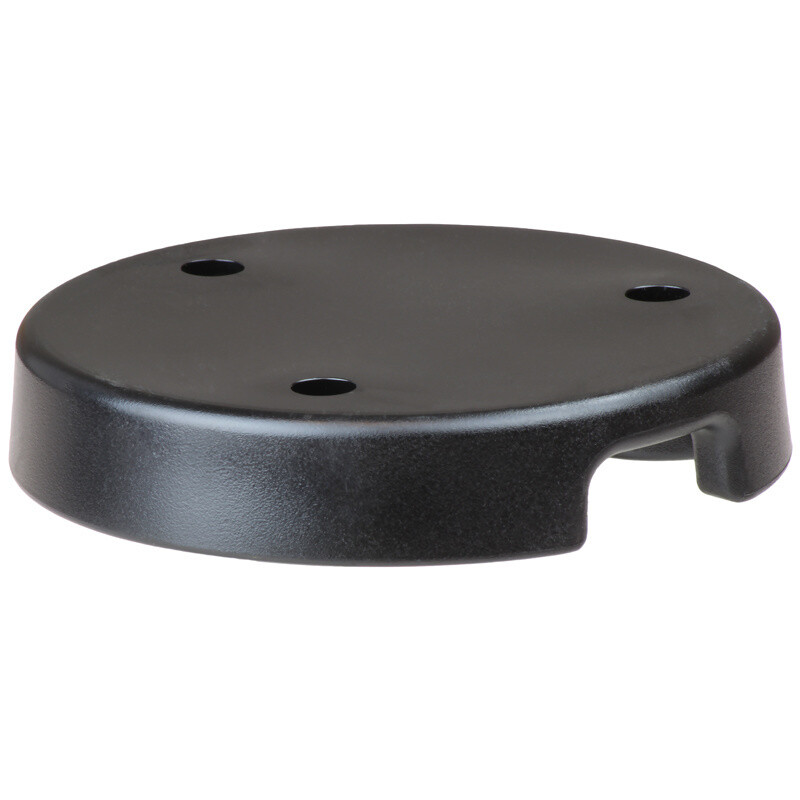

Overview The RAM Cable Manager creates an integrated route for electrical wiring and cleanly covers installation holes. A great addition to any surface mounting application. The RAM Cable Manager is made of glass filled nylon which has the benefit of creating a barrier between the RAM Surface Mount and the attachment area; minimizing vibration while reducing fiberglass and gel-coat damage. This item will fit any of the 3.68" diameter round plates with a 3 hole pattern. (Will not work with the AMPs hole pattern plates) Hardware Included (3) 5/16"-18 x 3" Machine Screws (3) 5/16"-18 Nylock Nuts (3) 5/16" Stainless Steel Washers Product Dimensions Cable Slot Height: .45" Cable Slot Width: .95" Clamp Range Max mounting surface thickness: 1.47" Hole Pattern 3-Hole 12-Degree: 2.75" Diameter Materials High strength composite Packaging Type Poly Bag Weight 0.5 lbs. Additional Information To prevent galling of threads during assembly, it is imperative that all threads are lubricated with oil prior to assembly.
