Horizontal 12" Swing Arm Mount for Fishfinders & Plotters
SKU RAM-109H-1U
$188.99
Sold out
Overview

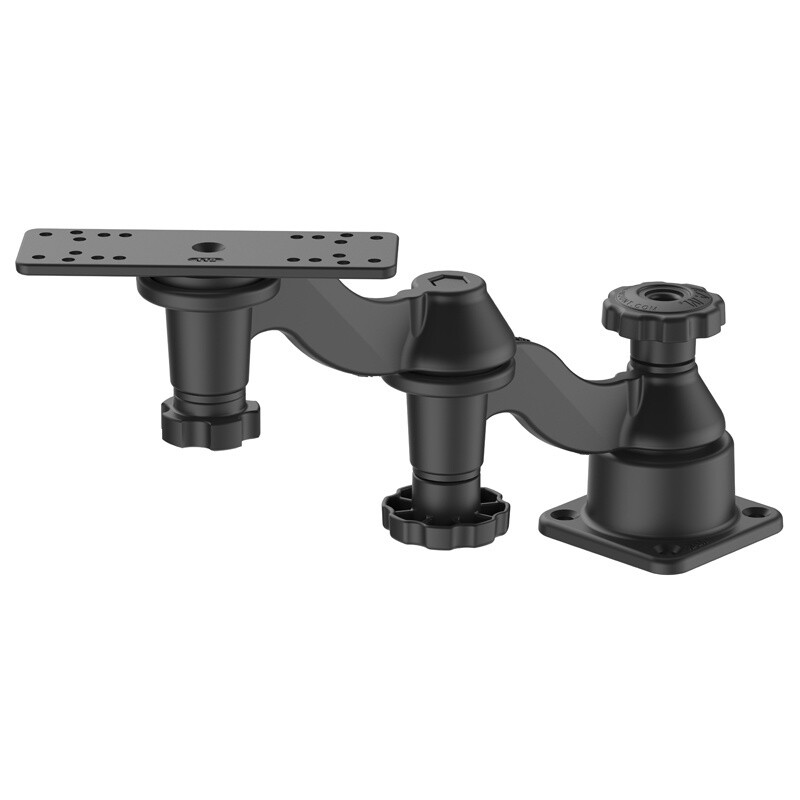

The RAM double swing arm mount includes two 6" long BENT swing arms mounted on a horizontal surface mounting base. At the device mounting end of the mount is a rectangular 6.25 x 2" top base. The pivoting points of the mount allow a complete 360 degree rotation.
Product Dimensions
Overall Height: 8.58"
Total Swing Arm Length: 12"
Hole Pattern
Top Plate: See Drawing
Bottom Plate: 2.5" x 2.5"
Plate Size
Top Plate: 6.25" x 2"
Bottom Plate: 3.47" x 3.47"
Weight Capacity
8 lbs
Materials
Marine-grade aluminum
Packaging Type
Poly Bag
Weight
2.6 lbs.
Additional Information
The included plate is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.
