Large Marine Electronics Mount
$129.99
Overview

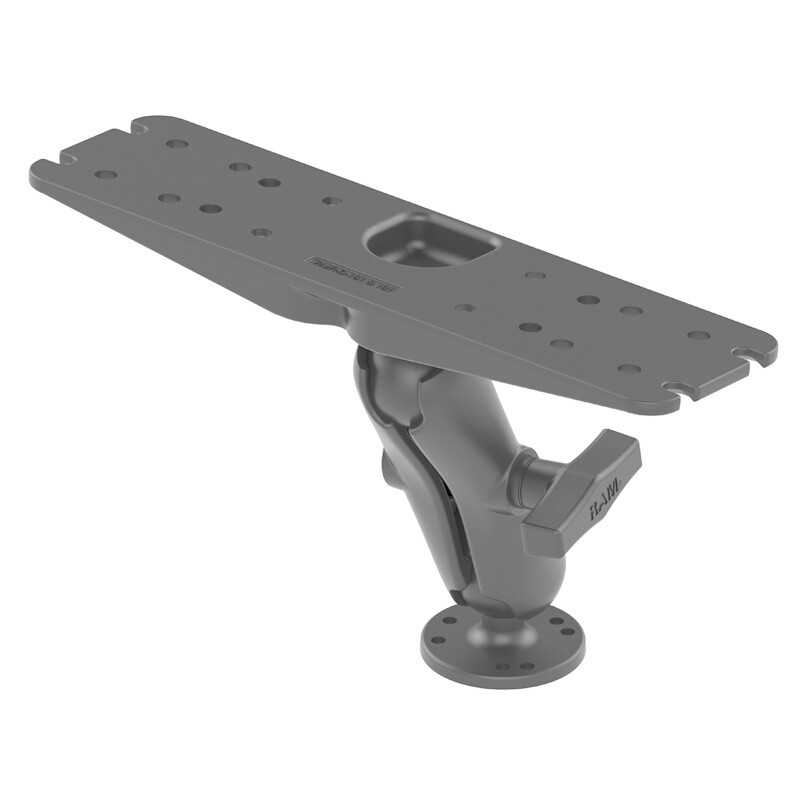

The RAM-137U, powder coated marine grade aluminum mount, consists of a double socket arm mount, one 2.5" diameter round base with 1.5" rubber ball and flat 11" x 3" rectangular plate. The plate contains different combinations of pre-drilled holes which will match up to many electronic devices and mounts, including Marine GPS, CB Radios, Ham Radios, Gimbal Brackets and more. Rubber ball, socket technology dampens shock and vibration, as well as allows for almost infinite adjustment, perfect viewing angles.
Hardware Included
(4) .312" x .187" Shoulder Washers
Socket-to-Socket Length
4.66"
Hole Pattern
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
See Drawing
Plate Size
Top Plate: 3" x 11"
Bottom Plate: 2.5" Diameter
Ball/Socket Size
C Size (1.5")
Weight Capacity
4 lbs
Materials
Marine-grade aluminum
Packaging Type
Poly Bag
Weight
1.95 lbs.
Additional Information
This plate is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.
In stock: 3 available
Save this product for later
Large Marine Electronics Mount
Product Details
UPC: 793442001376
Brand: Ram
Overview
The RAM-137U, powder coated marine grade aluminum mount, consists of a double socket arm mount, one 2.5" diameter round base with 1.5" rubber ball and flat 11" x 3" rectangular plate. The plate contains different combinations of pre-drilled holes which will match up to many electronic devices and mounts, including Marine GPS, CB Radios, Ham Radios, Gimbal Brackets and more. Rubber ball, socket technology dampens shock and vibration, as well as allows for almost infinite adjustment, perfect viewing angles.
Hardware Included
(4) .312" x .187" Shoulder Washers
Socket-to-Socket Length
4.66"
Hole Pattern
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
Plate Size
Top Plate: 3" x 11"
Bottom Plate: 2.5" Diameter
Ball/Socket Size
C Size (1.5")
Weight Capacity
4 lbs
Materials
Marine-grade aluminum
Packaging Type
Poly Bag
Weight
1.95 lbs.
Additional Information
This plate is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.
