Large Marine Electronics Mount
SKU RAM-D-111U-C
$214.99
Sold out
Features
Complete flat surface, drill-down mounting solution for large marine electronics with an overall height of 8.125"
RAM® Mounts ball and socket technology allows for near-infinite adjustability
Made of power-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments
Backed by a lifetime warranty
verview

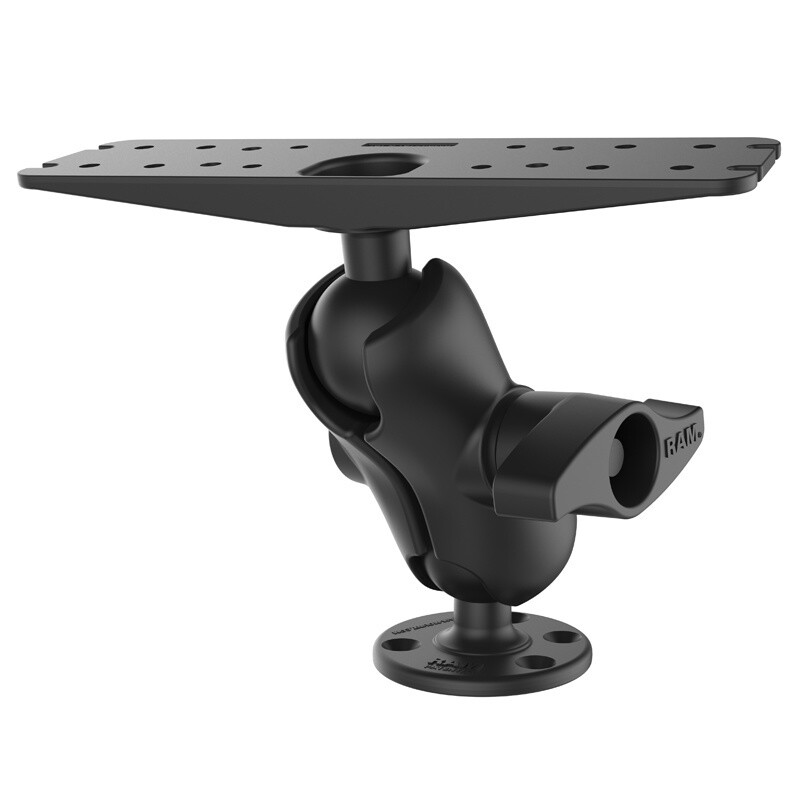

The RAM-D-111U-C consists of a short double socket arm, 3.68" diameter round base, and 11" x 3" rectangle base. The round base includes a 2.25" D size rubber ball and contains pre-drilled holes, including the universal AMPS hole pattern. The rectangle base also includes a 2.25" D size rubber ball and contains a variety of pre-drilled holes that are compatible with several large marine electronic devices, including fishfinders and chartplotters.
Hardware Included
(4) .312" x .187" Shoulder Washers
Product Dimensions
Overall Length: 8.125"
Socket-to-Socket Length
3.6"
Hole Pattern
See Drawings
Plate Size
Top Plate: 3" x 11"
Bottom Plate: 3.68" Diameter
Ball/Socket Size
D Size (2.25")
Weight Capacity
6 lbs
Materials
Marine-grade aluminum
Packaging Type
Poly Bag
Weight
3.58 lbs.
Additional Information
The 11" x 3" rectangle base is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.
Sold out
Save this product for later
Large Marine Electronics Mount
Product Details
UPC: 793442902277
Brand: Ram
Features
- Complete flat surface, drill-down mounting solution for large marine electronics with an overall height of 8.125"
- RAM® Mounts ball and socket technology allows for near-infinite adjustability
- Made of power-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments
- Backed by a lifetime warranty
Overview
The RAM-D-111U-C consists of a short double socket arm, 3.68" diameter round base, and 11" x 3" rectangle base. The round base includes a 2.25" D size rubber ball and contains pre-drilled holes, including the universal AMPS hole pattern. The rectangle base also includes a 2.25" D size rubber ball and contains a variety of pre-drilled holes that are compatible with several large marine electronic devices, including fishfinders and chartplotters.
Hardware Included
(4) .312" x .187" Shoulder Washers
Product Dimensions
Overall Length: 8.125"
Socket-to-Socket Length 3.6"
Hole Pattern
See Drawings
Plate Size
Top Plate: 3" x 11" Bottom Plate: 3.68" Diameter
Ball/Socket Size
D Size (2.25")
Weight Capacity
6 lbs
Materials
Marine-grade aluminum
Packaging Type
Poly Bag
Weight
3.58 lbs.
Additional Information
The 11" x 3" rectangle base is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.
