RAM MOUNT W/ 3 X 11 BASE & 3 3/4 BASE
$259.99
The RAM-D-111U consists of a medium double socket arm, 3.68" diameter round base, and 11" x 3" rectangle base. The round base includes a 2.25" D size rubber ball and contains pre-drilled holes, including the universal AMPS hole pattern. The rectangle base
In stock: 1 available
Save this product for later
RAM MOUNT W/ 3 X 11 BASE & 3 3/4 BASE
Product Details
UPC: 793442201110
Brand: Ram

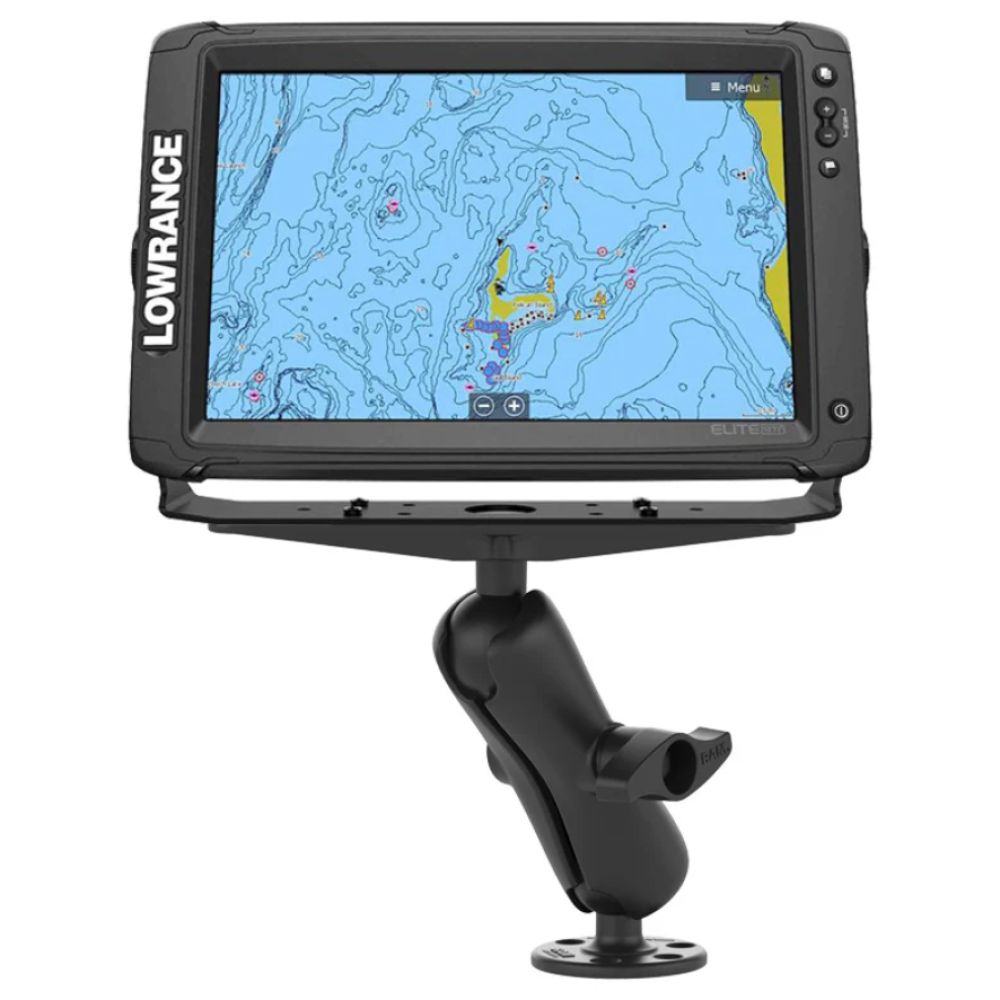

The RAM-D-111U consists of a medium double socket arm, 3.68" diameter round base, and 11" x 3" rectangle base. The round base includes a 2.25" D size rubber ball and contains pre-drilled holes, including the universal AMPS hole pattern. The rectangle base also includes a 2.25" D size rubber ball and contains a variety of pre-drilled holes that are compatible with several large marine electronic devices, including fishfinders and chartplotters. Included are four shoulder washers that allow smaller hardware to fit properly in the large holes of this plate.
- Complete flat surface, drill-down mounting solution for large marine electronics with an overall height of 11.5"
- RAM® Mounts ball and socket technology allows for near-infinite adjustability
- Made of Powder-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments
- Backed by a lifetime warranty
Hardware Included:
(4) .312" x .187" Shoulder Washers
Product Dimensions:
Overall Height: 11.5"
Socket to Socket Length:
6.88"
Hole Pattern:
See Drawings
Plate Size:
Top Plate: 3" x 11"
Bottom Plate: 3.68" Diameter
Ball Size:
D Size (2.25")
Weight Capacity:
Standard Use: 6 lbs
Heavy-Duty Use: 5 lbs
Materials:
Marine-grade aluminum
Packaging Type:
Poly Bag
Weight:
4.65 lb
Additional Information:
The 11" x 3" rectangle base is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.
