Tough-Claw™ Trolling Motor Stabilizer Short

Overview

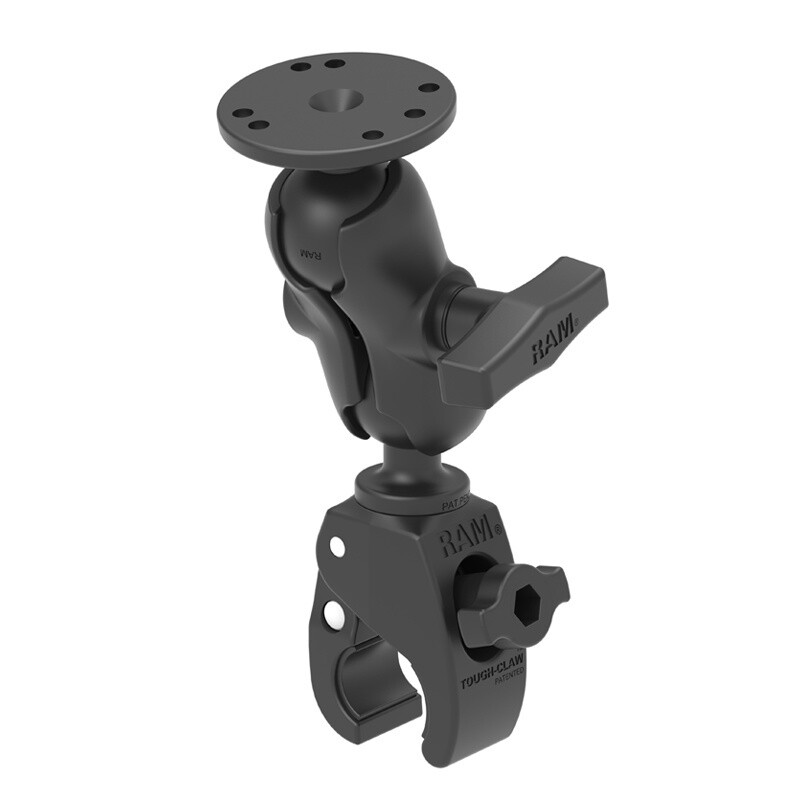

The RAM-202-B-400U consists of the small Tough-Claw™ base, short double socket arm and round base adapter. The RAM Tough-Claw™ is the perfect mounting base for quick and easy tool-less installation and removal on round, square, odd shaped rails and bars. The Tough-Claw™ can be clamped on rails from 0.625" - 1.5" outer diameter. The round base adapter contains the industry standard universal AMPS hole pattern, which will connect to a large variety of RAM Mount and third party cradles. The mount is designed with a RAM 1.5" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.

Clamp Range
.625" - 1.5" diameter
0" - 1.14" flat surfaces

Socket-to-Socket Length
2.5"

Hole Pattern
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

Ball/Socket Size
C Size (1.5")

Weight Capacity
4 lbs

Materials
Marine-grade aluminum
High strength composite

Packaging Type
Poly Bag

Weight
1.09 lbs.
