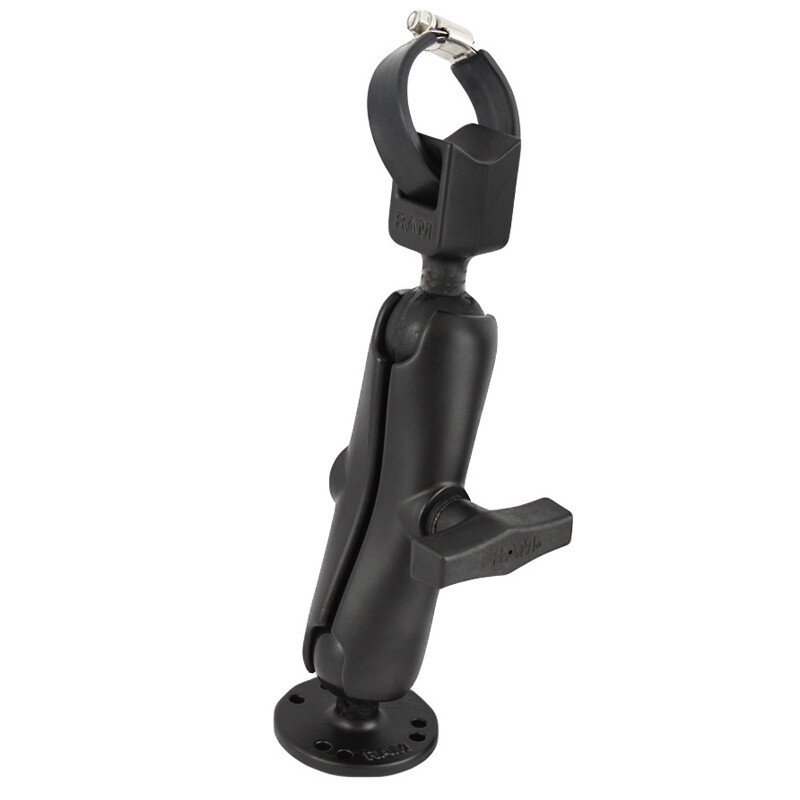

Trolling Motor Stabilizer with Strap Hose Clamp Short

• Trolling motor stabilizer mount protects the trolling motor and mounting surface from damage; strap hose clamp compatible with rails from 1" to 2.1" in diameter
• Includes strap hose clamp base with C size 1.5" rubber ball, medium length C size double socket arm, and 2.5" round plate with C size 1.5" rubber ball
• Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
• Backed by a lifetime warranty

Overview

A must for any angler with a bow mount trolling motor, the RAM-108U trolling motor stabilizer consists of a C size 1.5" medium length double socket arm, 2.5" diameter round base that contains the universal AMPS hole pattern, strap hose clamp base, and drill-down 1.5" round plate with C size ball. The strap accommodates rails from 1" to 2.1" in diameter. The trolling motor stabilizer takes the vibration out of your trolling motor while protecting the trolling motor and mounting surface from damage. The maximum allowable distance between the mounting surface on the boat and the lowest point of the trolling motor shaft is 8.75”.

Hardware Included
(1) #20 Worm Drive Strap Clamp
(1) #28 Worm Drive Strap Clamp
(1) 6" Rubber Strip

Product Dimensions
Overall Height: 9"

Clamp Range
1" - 2.1" diameter

Socket-to-Socket Length
4.66"

Hole Pattern
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

Plate Size
2.5" Diameter

Ball/Socket Size
C Size (1.5")

Weight Capacity
4 lbs

Materials
Marine-grade aluminum

Packaging Type
Poly Bag

Weight
1.17 lbs.
